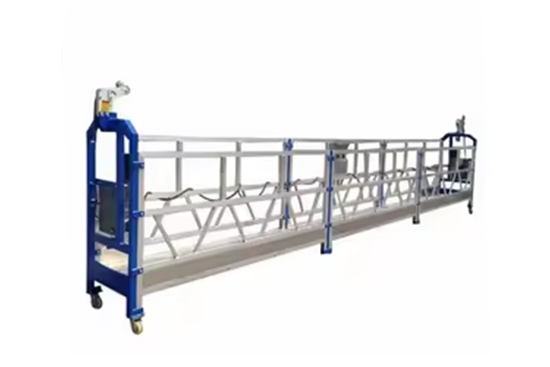

Product Introduction:

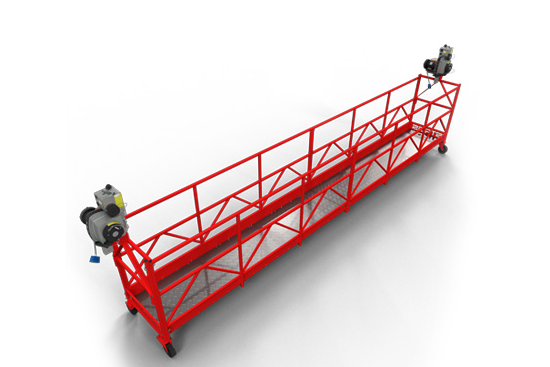

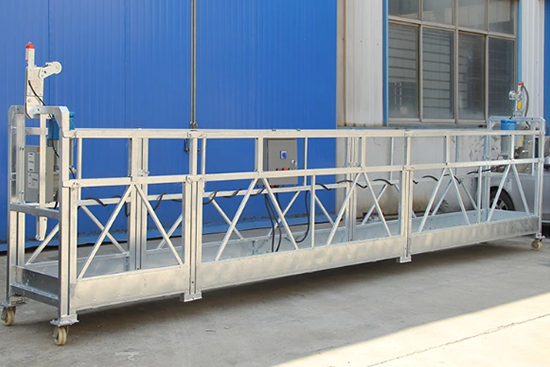

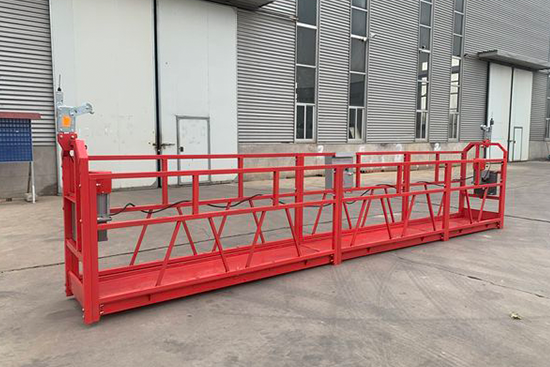

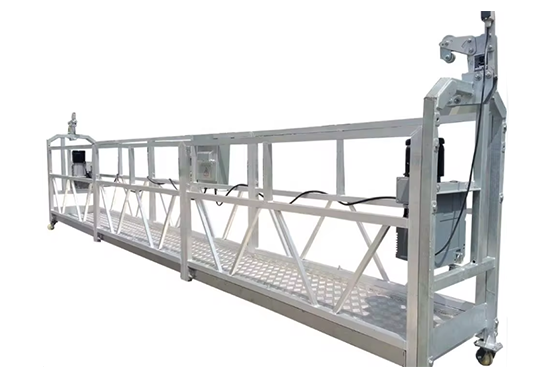

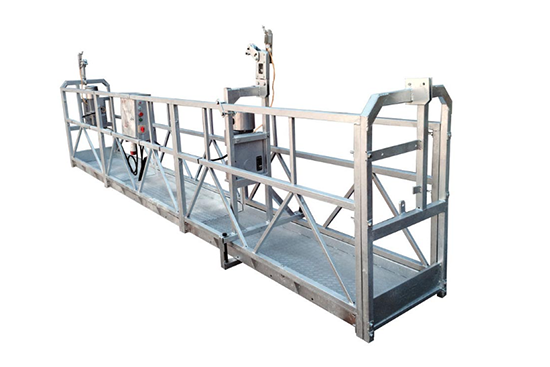

The rope type hanging basket usually refers to the hanging basket suspended and lifted through the rope system such as wire rope, and its suspension mechanism is erected on the building or structure, and the suspension platform is driven by the elevator to run up and down the facade. The working principle of the rope type hanging basket is relatively simple, mainly through the elevator to drive the wire rope, so that the suspended platform runs up and down the facade of the building or structure. In the process of operation, workers can carry out welding, painting, installation and other high-altitude operations in the suspension platform, without directly standing at the height of the operation, which greatly reduces the risk of operation.
Product Advantage:
Go high work, hanging basket with me
First, high security
Excellent materials: the rope type hanging basket mainly uses high-strength steel wire rope as the suspension and transmission medium, these steel wire ropes have the advantages of strong bearing capacity, wear resistance, high tensile strength, and can withstand the suspension of heavy objects and the work of construction personnel to ensure the safety of the operation process.
Perfect safety device: the hanging basket is equipped with safety locks, limiting devices and other safety devices, which can quickly lock the safety wire rope in emergency situations, prevent the suspension platform from sliding or tilting, and effectively ensure the safety of operators. For example, when the work rope slips and the motor fails to cause the hanging basket to tilt to a certain Angle, the safety lock will automatically lock the safety wire rope and play a safety protection role.
Multiple protection: In addition to the safety lock, the basket is also equipped with leakage protection switches, removable operating boxes, external power sockets and other safety equipment to further improve the safety of the operation process.
Second, efficient and convenient
Strong flexibility: the rope type hanging basket can be customized according to the construction needs, adapt to the shape and size of different buildings, to provide convenience for construction. At the same time, the installation and disassembly process is simple and fast, saving construction time and labor costs.
High working efficiency: When the rope type hanging basket is used for high-altitude work, the construction personnel can work more efficiently and improve work efficiency. In addition, the lifting process of the hanging basket is stable, which reduces the physical consumption and operational risks of the operator.
Third, strong adaptability
Widely used: rope type hanging basket is not only suitable for the construction and maintenance of high-rise buildings, such as exterior wall cleaning, maintenance, decoration, etc., but also suitable for Bridges, chimneys, large equipment and other high-altitude work scenes, with strong adaptability and flexibility.
Good environmental adaptability: the hanging basket can operate in a variety of complex environments, such as high temperature, low temperature, wet and other environments, as long as the safety and stability of the equipment can meet the construction needs.
Easy maintenance
Easy maintenance: The maintenance of the rope type hanging basket is relatively simple, only need to check and maintain the equipment regularly to ensure that it is in good condition. At the same time, because the components of the hanging basket are relatively simple, the replacement and maintenance are also more convenient.
Technical Parameters:
| Model number | ZLP800 | ZLP630 | ZLP500 | |
| Rated load (kg) | 800 | 630 | 500 | |
| Lifting speed (m/min) | 8-10 | 9-11 | 9-11 | |
| Rated power (kW) | 2.2x2 | 1.5 x2 | 1.1x2 | |
| Hoist number | LTD80 | LTD63 | LTD50 | |
| Safety lock type | LSA30 | LSA30 | LSA30 | |
Work platform size Length x Width x Height (mm) | 7500x690x1230 | 6000x690x1230 | 5000x690x1230 | |
| Suspension weight (kg) | 350 | 350 | 350 | |
| Weight (kg) | 1000 | 800 | 750 | |
| Lifting part weight (kg) | Steel platform | 600 | 500 | 400 |
| Aluminium platform | 440 | 340 | 290 | |
Product Uses
The main function of the rope type hanging basket is to provide a safe and convenient high-altitude working platform for workers. In bridge, construction and other engineering fields, rope hanging baskets are widely used in beam assembly, painting operations, exterior wall decoration, exterior wall cleaning and maintenance and repair. By using the rope type hanging basket, the construction efficiency can be significantly improved, the operation risk can be reduced, and the life safety of workers can be guaranteed.
Product Operate Guide
Operation during use
Start and lift:
Before starting the basket, ensure that all safety devices are in normal condition.
The operator should stand at the bottom of the hanging basket and start the hoist through the control box to make the hanging basket rise and fall smoothly to the working height.
During the lifting process, the operator should pay close attention to the stability and safety of the hanging basket to avoid shaking and tilting.
Job operation:
When working in the hanging basket, the safety and operating procedures for working at height should be observed.
Operators should wear safety belts and fasten them on a firm fixed point.
Illegal operations and dangerous operations, such as smoking and using open flames, are prohibited in the hanging basket.
Note:
Strictly control the load of the basket, shall not exceed the rated load.
Check and adjust the suspension and fixing of the basket regularly to ensure its stability and safety.
In the event of bad weather (such as strong wind, heavy rain, etc.), the operation should be stopped immediately and the corresponding safety measures should be taken.
The finishing touches after use
Cleaning and inspection:
After the completion of the operation, the debris and dirt in the hanging basket should be cleaned up in time to keep it clean.
Carry out a comprehensive inspection of the hanging basket equipment to confirm that no abnormal conditions can be stopped.
Fixed and stored:
Secure the hanging basket to prevent it from being hit or sliding by external forces.
Turn off the control box and power supply and unplug the power supply.
Store the hanging basket in a dry, ventilated environment free of corrosive gases
FAQ
1. How to ensure the safety of the suspended platform?
A: The safety of the rope type hanging basket is mainly guaranteed through the following aspects:
Equipment quality: The selection of high-quality, high-strength materials and components to manufacture the hanging basket to ensure its carrying capacity and durability.
Safety device: Equipped with anti-fall safety lock, limit device and other safety devices to ensure that in an emergency can quickly lock and stop the fall, to prevent the suspension platform out of control.
Operation specifications: Operators need to be professionally trained to master the correct operation methods and safety procedures to ensure the safety of the operation process.
Regular inspection and maintenance: Regular inspection and maintenance of the hanging basket equipment to ensure that it is in good condition, timely detection and treatment of potential safety hazards.
2. What is the load limit of the rope type hanging basket?
A: The load limit of the rope type hanging basket varies according to the model and specification, and the specific value should refer to the equipment manual or relevant standards. In general, the load of the hanging basket includes the total weight of the operator, tools, materials, etc., and it is strictly prohibited to use more than the rated load. Exceeding the load limit may result in equipment damage or safety accidents.
3. How to avoid the swing of the basket during use?
A: The methods to avoid shaking the hanging basket mainly include:
Ensure that the suspension mechanism is stable: The suspension mechanism should be installed on a stable building structure to ensure that it can withstand the weight of the basket and the operator.
Control the lifting speed: During the lifting process, the operator should control the lifting speed smoothly to avoid shaking caused by sharp lifting and falling.
Maintain balance: When working in the hanging basket, the operator should be evenly distributed and maintain balance to avoid concentrating heavy objects to cause the hanging basket to tilt.
Use anti-swing device: Some hanging baskets are equipped with anti-swing device, which can reduce shaking to a certain extent.
4. What do you need to pay attention to the maintenance of the rope type hanging basket?
A: The maintenance of the rope type hanging basket needs to pay attention to the following matters:
Regular inspection: Regular inspection of the hanging basket equipment, including the integrity and functional normality of the steel wire rope, safety devices, electrical systems and other components.
Cleaning and lubrication: keep the basket clean and dry, regularly clean dust and dirt; Lubricate and maintain the parts that need lubrication.
Replace worn parts: Replace badly worn or damaged parts in time to ensure device safety and reliability.
Storage and protection: When not in use, the hanging basket will be stored in a dry, ventilated, non-corrosive gas environment to avoid long-term exposure to the sun and rain.
5. How to ensure the safety of the electrical system of the rope type hanging basket?
A: The electrical system safety of the rope type hanging basket is mainly ensured by the following measures:
Selection of qualified electrical components: selection of electrical components and control systems in line with national standards and industry norms.
Electrical system protection: Set overload protection, short circuit protection and other electrical protection measures to prevent the electrical system from being damaged due to overload or short circuit.
Grounding and zero connection: Ensure that the electrical system is well grounded and zero connection to prevent electric shock accidents.
Regular inspection and maintenance: Regular inspection and maintenance of the electrical system to ensure its normal operation and timely detection and treatment of potential safety hazards.
