Passenger&Goods Building Construction Hoist Mast Section
1. Description

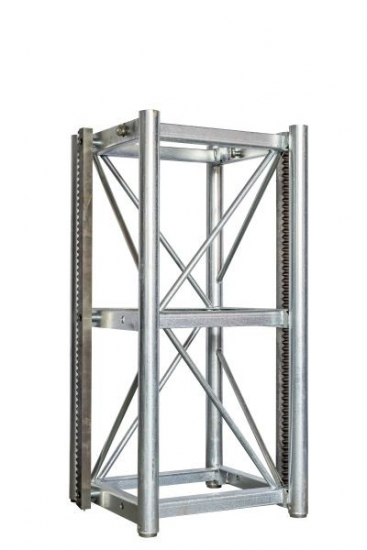

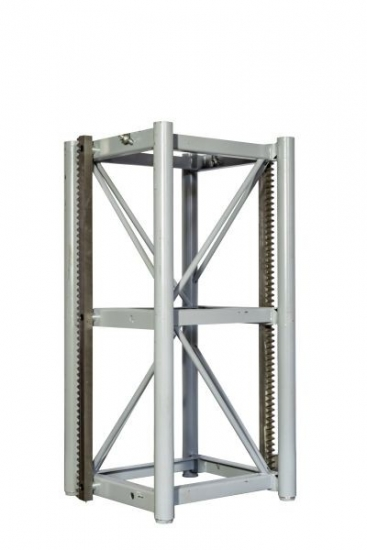

The galvanized construction hoist mast section can be used for a longer time, making the machine run more smoothly on it
Main Parameters:
Characteristic | Model | Rated Loading | Lifting Speed | Motor Power | |
Double cages | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) / 2x(3x8.5kw) | |
SC150/150 | 2x1500kg | 33m/min | 2x(2x13kw) | ||
SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) | ||
Single cage | SC200 | 2000kg | 33m/min | 3x11kw /3x8.5kw | |
SC150 | 1500kg | 33m/min | 2x13kw | ||
SC100 | 1000kg | 33m/min | 2x11kw | ||
Double cages | Low speed | SC200/200D | 2X2000kg | 0-40m/min | 2x(3x11kw)/2x(3x8.5kw) |
SC100/100D | 2x1000kg | 0-40m/min | 2x(2x13kw) | ||
Mid speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(2x23kw) | |
SC100/100Z | 2x1000kg | 0-60m/min | 2x(2x15kw) | ||
Single cage | Low speed | SC200 | 2000kg | 0-40m/min | 3x11kw /3x8.5kw |
SC100 | 1000kg | 0-40m/min | 2x13kw | ||
Mid speed | SC200 | 2000kg | 0-60m/min | 2x23kw | |
SC100 | 1000kg | 0-60m/min | 2x15kw | ||
Details Specification:
Item | Construction hoist |
Model | SC100/100/SC200/200 |
Rated capacity/per cage | 1000kg-2000kg |
Lifting speed | 0-63m/min,0-42m/min,0-33m/min |
Cage size | 3.2*1.5*2.4m |

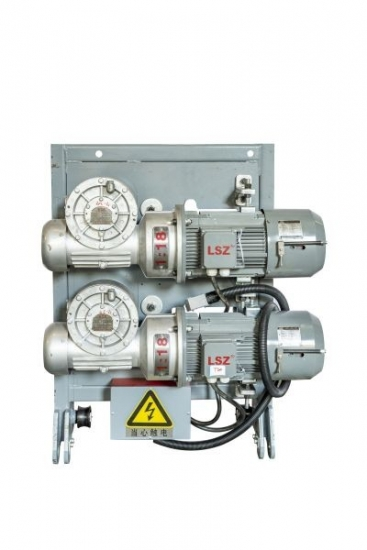

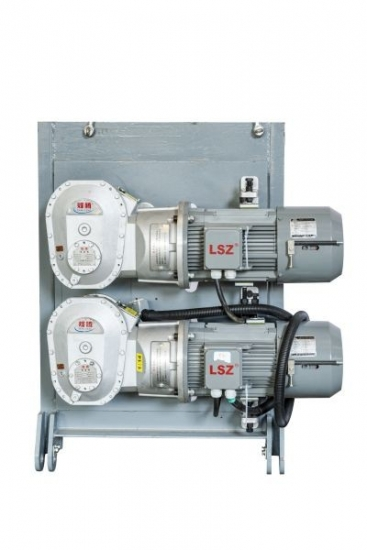

Motor power | 3*15kw/3*11/2*15/3*18.5 |
Speed ratio | 1:18 /1:16 |
Invertor Power | 45 kW/37kw |
Safety device | SAJ40-1.2/SAJ40-1.4/SAJ30-1.2 |
Mast section size | 0.65*0.65*1.508m |
Max. Installation height | 300m |
Cable type | Cable basket/cable trolley |
WHY CHOOSE US?
Completed safety measures Of Construction Hoist
1. Equiping with Anti-falling govenor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit swithes, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Frequecy Conversion (Inverter) can be choose

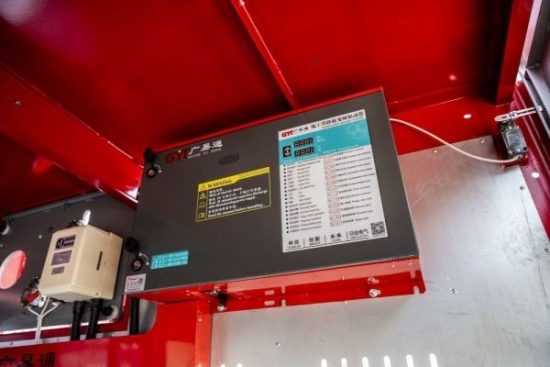

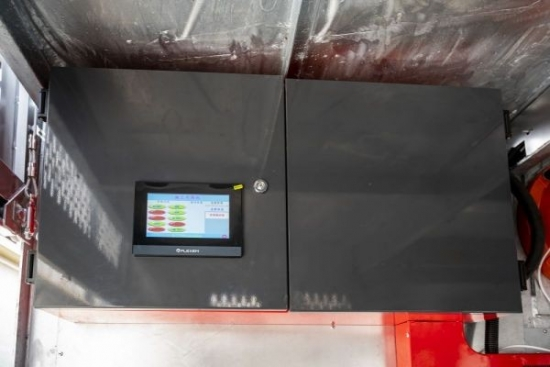

8. PLC Control system can be choose
9. Level Calling system and Auto leveling device to be choose.
Construction Hoist For Civil Projects
On large projects, clients benefit from our input at pre-planning stage to help determine exact lifting requirements. With our comprehensive service, we can advise clients on the most suitable access solution as well as providing the desired level of design input at any stage of the process.
Manufacturing Workshop：
We pay all our attention for CE approved Materials Passenger hoist Building Construction Hoist design and manufacturing.
Package And Shipping
High quality Sc200/200 Building Construction Hoist for Material Passenger Lift Hoist is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details.The Building Construction hoist for materials and passengers can be customized according to customers'requirements (drawing, specifications and so on).
