Product Introduction:

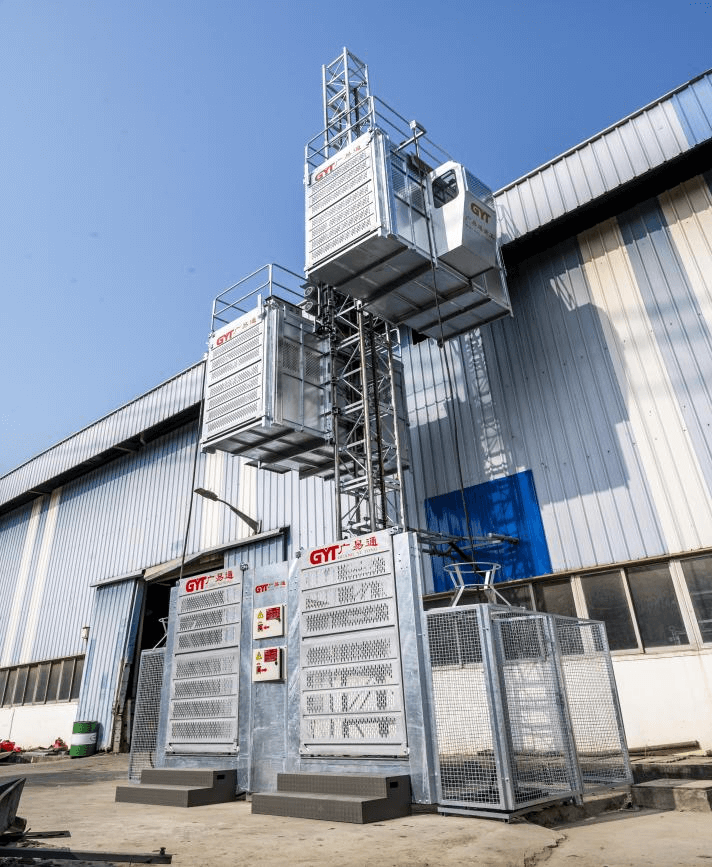

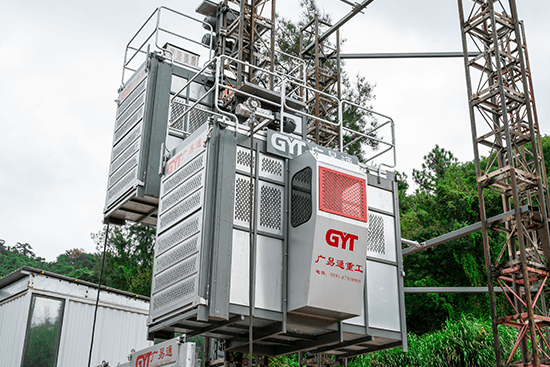

Construction hoist, an indispensable equipment in building construction, its basic function is to provide safe, efficient and fast vertical transportation service. It is designed for high-rise and ultra-high-rise buildings, and through its unique box structure, it ensures that workers and materials can move smoothly and safely between floors, thus accelerating construction progress and improving operational efficiency.
Construction hoists usually have high load capacity and operating speed to meet the needs of different construction scenarios. Its structure is stable, and the safety protection devices are perfect, such as cage safety guardrail, wire rope fall protection system, etc., which can effectively protect the safety of construction personnel. In addition, the construction elevator can be equipped with a variety of auxiliary equipment according to the actual needs, such as frequency conversion device, floor call device, etc., in order to further enhance the convenience and efficiency of its use.
Overall, the construction hoist is an indispensable and important equipment in modern building construction, and its efficient, safe and convenient vertical transportation service provides a strong guarantee for the smooth progress of building construction.
Product Advantage:

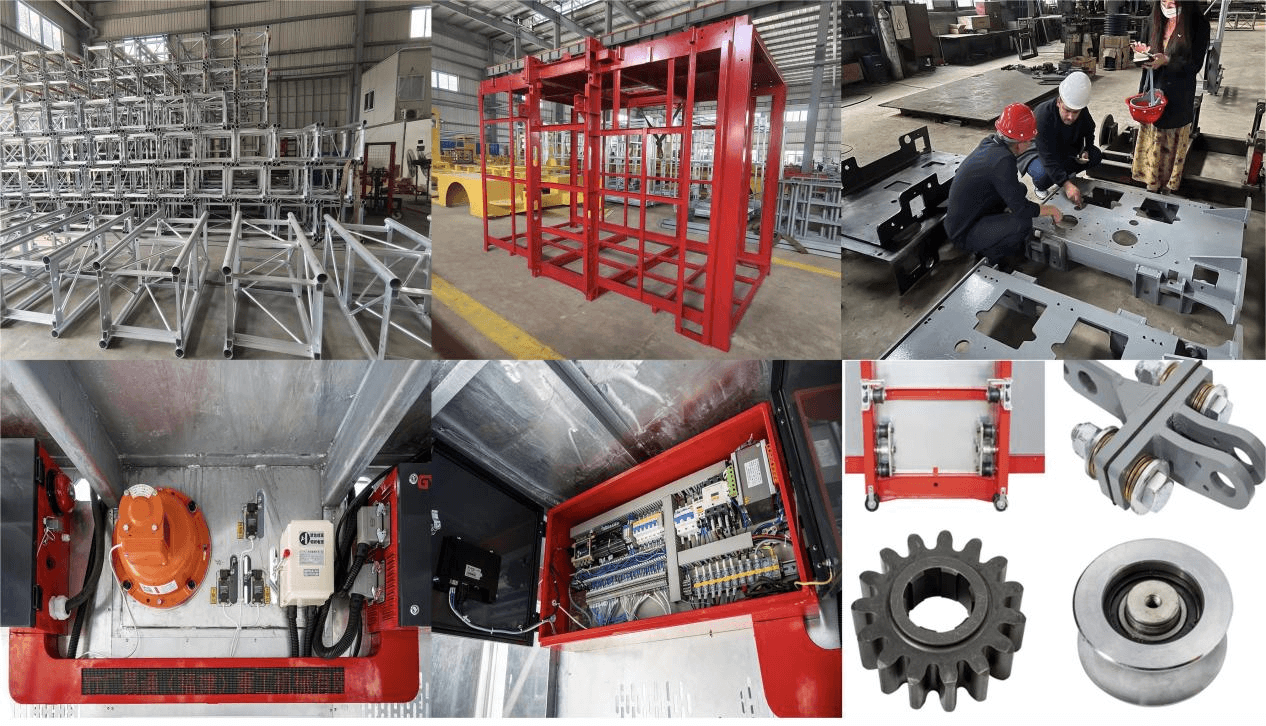

1. Mast section: the whole is galvanized, whether it is gloss, durability, or rust will be greatly improved, relative to other factories, our galvanizing link will be more strict and careful.
2. Stronger structure: the bottom plate is thickened to 4mm, and the main beam is thickened to 6mm and widened to 160mm, which is stronger and more durable, and the safety performance is greatly improved. And the cage structure adopts special tire welding, solid and sturdy.

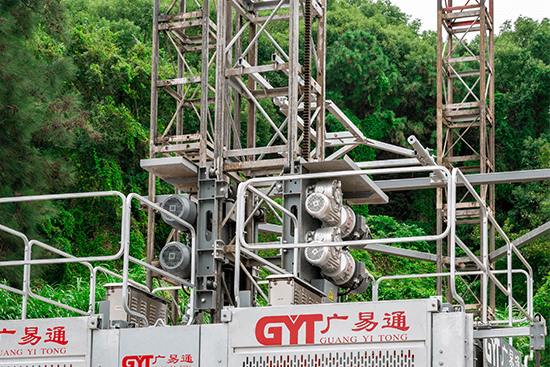

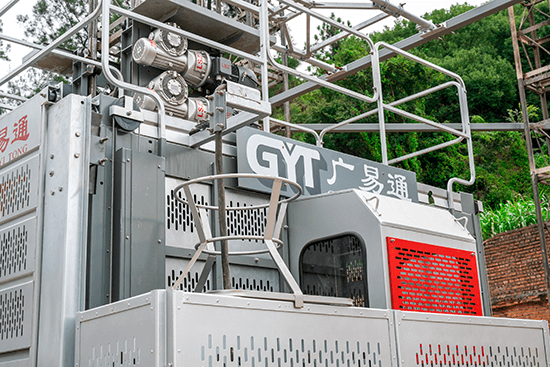

3. Driving structure: We use finishing driving plate, using special tooling, the whole is more durable and strong. In addition, we are using fine grinding gears (high precision, low vibration noise). Our rollers are all CNC machined, which makes the holes more accurate and ensures the size fit, (the overall welding technology has less vibration and helps to reduce the noise). Overall galvanized, rust-proof.
4. Frequency control system: energy saving, low starting current, adjustable progress, smooth starting, low mechanical wear, can track the elevator operation. Intelligent voice announcement, support multi-language.

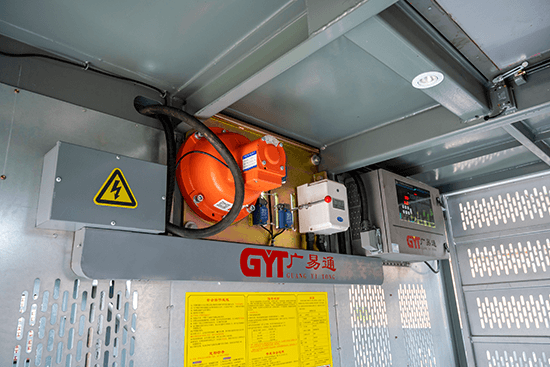

5. One-piece safety panel: equipped with safe and reliable anti-pads, Schneider limit switch, to ensure the safe operation of construction elevator.
6. We are using imported special bearings (NSK longer life), which can help the elevator run more smoothly and improve the working efficiency.In addition, our elevators all use fine grinding gears (high precision and low vibration noise). Our rollers are CNC machined, which makes the holes more accurate, ensures the size fit, greatly reduces the vibration and reduces the noise.
Product Uses：

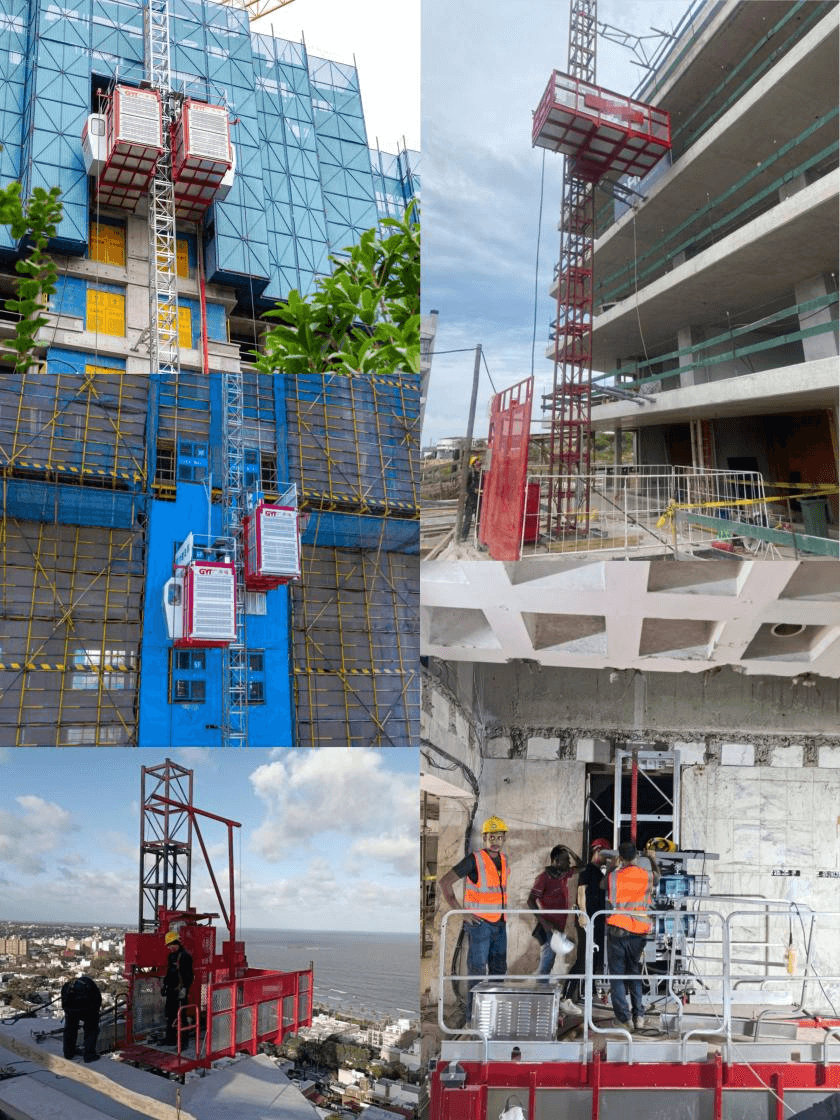

Construction hoist is widely used in all kinds of building construction scenarios, including interior and exterior decoration of high-rise and ultra-high-rise buildings, construction of bridges and chimneys, shafts and other structures.
It can not only efficiently transport personnel and materials, shorten the construction period, but also provide a safe and comfortable riding experience for construction workers with its unique box structure.
In addition, construction elevator is also commonly used in hotels, airports, stations and other places of aerial work, is to ensure the safety and efficiency of the construction of important equipment.
Technical Parameters：
Product Description
Item | Construction hoist |
Model | SC100/100/SC200/200 |
Rated capacity/per cage | 1000kg-2000kg |
Lifting speed | 0-63m/min,0-42m/min,0-33m/min |
Cage size | 3.2*1.5*2.4m |
Motor power | 3*15kw/3*11/2*15/3*18.5 |
Speed ratio | 1:18 /1:16 |
Invertor Power | 45 kW/37kw |
Safety device | SAJ40-1.2/SAJ40-1.4/SAJ30-1.2 |
Mast section size | 0.65*0.65*1.508m |
Max. Installation height | 300m |
Cable type | Cable basket/cable trolley |
Model Type
Characteristic | Model | Rated Loading | Lifting Speed | Motor Power | |
Double cages | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) / 2x(3x8.5kw) | |
SC150/150 | 2x1500kg | 33m/min | 2x(2x13kw) | ||
SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) | ||
Single cage | SC200 | 2000kg | 33m/min | 3x11kw /3x8.5kw | |
SC150 | 1500kg | 33m/min | 2x13kw | ||
SC100 | 1000kg | 33m/min | 2x11kw | ||
Double cages | Low speed | SC200/200D | 2X2000kg | 0-40m/min | 2x(3x11kw)/2x(3x8.5kw) |
SC100/100D | 2x1000kg | 0-40m/min | 2x(2x13kw) | ||
Mid speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(2x23kw) | |
SC100/100Z | 2x1000kg | 0-60m/min | 2x(2x15kw) | ||
Single cage | Low speed | SC200 | 2000kg | 0-40m/min | 3x11kw /3x8.5kw |
SC100 | 1000kg | 0-40m/min | 2x13kw | ||
Mid speed | SC200 | 2000kg | 0-60m/min | 2x23kw | |
SC100 | 1000kg | 0-60m/min | 2x15kw | ||
Product Video：
Product Operate Guide：
When using a construction lift, follow these steps:
First, make sure the lift is in a safe condition and check that the door locks and safety devices are intact.
Second, follow the instruction buttons to select the floor and enter the cage smoothly.
During the lifting process, keep your body balanced and avoid strenuous movements.
After reaching the target floor, wait until the cage comes to a complete stop before opening the door to leave.
Please always observe the safety regulations to ensure safe operation.
FAQ：
1. What are your main products?
We produce all kinds of Construction Elevator Passenger materials hoist from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.
2. Are all Construction elevators the same from all Vendors & Manufacturers?
Our High rise building Construction Elevator Passenger materials hoist with VFD for lifting materials and passengers has been exported to Europe, Middle, and Southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russian standards, and American standards. We have the technology for developing new design ability and we support many customers with good solutions to solve their construction site special vertical access problems.
3. Do your products have some certificates?
Yes. Our building Construction Elevator Passenger materials hoist has passed CE, ISO, and SGS Certificates.
4. What are the payment terms and the delivery time?
Payment terms for building the Construction Elevator Passenger materials hoist are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you a manufacturer or a trader?
We are a manufacturer of building Construction Elevator Passenger materials hoists with 10 years of maker experience, have an advanced production line and inspection device. Our Research and development team has got a lot of praise from customers.
6. Will you develop a distributor and sole agent?
Yes, should you have any interest to be our building Construction Elevator Passenger materials hoist distributor and agent, please let us know in anyways. The sole agent is available depending on sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping of building Construction Elevator Passenger materials hoist to countries all over the world from Fuzhou port.
We have done the business of building Construction Elevator Passenger materials hoists with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait, Saudi Arabia, etc.
8. Quotation request:
If you are interested in our building Construction Elevator Passenger materials hoist, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temperature
6) Local power supply (V, Hz)
7) Is there any space limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipment.
9) FOB or CIF price? If CIF, plz let us know your destination port.
We will provide the best price for building the Construction Elevator Passenger materials hoist once confirmed the above. You can get our feedback within 12 hours!
