High Speed Frequency Conversion Building Construction Hoist
1. Description
Construction hoists vary in size and weight capacity. They are used on the construction site as a means to lift supplies and personnel, sometimes together and sometimes separate, depending on the design. When choosing a construction hoist, the needs of the hoist must be clear so the right one is chosen for the job. A hoist not created to handle the weight which it will be used for could put personnel in danger, leaving an entire job in jeopardy.
Characteristic | Model | Rated Loading | Lifting Speed | Motor Power | |
Double cages | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) / 2x(3x8.5kw) | |
SC150/150 | 2x1500kg | 33m/min | 2x(2x13kw) | ||
SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) | ||
Single cage | SC200 | 2000kg | 33m/min | 3x11kw /3x8.5kw | |
SC150 | 1500kg | 33m/min | 2x13kw | ||
SC100 | 1000kg | 33m/min | 2x11kw | ||
Double cages | Low speed | SC200/200D | 2X2000kg | 0-40m/min | 2x(3x11kw)/2x(3x8.5kw) |
SC100/100D | 2x1000kg | 0-40m/min | 2x(2x13kw) | ||
Mid speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(2x23kw) | |
SC100/100Z | 2x1000kg | 0-60m/min | 2x(2x15kw) | ||
Single cage | Low speed | SC200 | 2000kg | 0-40m/min | 3x11kw /3x8.5kw |
SC100 | 1000kg | 0-40m/min | 2x13kw | ||
Mid speed | SC200 | 2000kg | 0-60m/min | 2x23kw | |
SC100 | 1000kg | 0-60m/min | 2x15kw | ||
Details Specification
Item | Construction hoist |
Model | SC100/100/SC200/200 |
Rated capacity/per cage | 1000kg-2000kg |
Lifting speed | 0-63m/min,0-42m/min,0-33m/min |
Cage size | 3.2*1.5*2.4m |
Motor power | 3*15kw/3*11/2*15/3*18.5 |
Speed ratio | 1:18 /1:16 |
Invertor Power | 45 kW/37kw |
Safety device | SAJ40-1.2/SAJ40-1.4/SAJ30-1.2 |
Mast section size | 0.65*0.65*1.508m |
Max. Installation height | 300m |
Cable type | Cable basket/cable trolley |
WHY CHOOSE US?
Fuzhou GuangYiTong Machinery Co., Ltd. is a professional manufacturer and exporter.
Our products are construction hoist, suspension platform, We can do OEM for Our customers.
1. 10 years more manufacturing experience and 3 Years exporting experience.
2. Great technician Team with innovation and improvement abilities
3. Zero accident record and good feedback from the end-users.
4. Best price offered with special discount, high quality, and stable operation experience.
5. Fast response with sales and after-sale service
6. Welcome agents or distributors all over the world for cooperation partnership.
Completed safety measures Of Construction Hoist
1. Equiping with Anti-falling govenor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit swithes, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Frequecy Conversion (Inverter) can be choose
8. PLC Control system can be choose
9. Level Calling system and Auto leveling device to be choose.
company Profile
Guangyitong Heavy Industry Machinery Co., Ltd is located in the national pilot Free Trade Zone in Fuzhou, China. It is a comprehensive company, integrating design, production, sales, and leasing. As a professional manufacturer of construction elevators for more than 20 years, it covers an area of nearly 20000 square meters. The production workshops cover 19, 980 square meters. The company has more than 80 employees, 28 engineering technical personnel, including 15 technicians with intermediate and senior titles. The company′s product quality is stable, cost-effective, applicability, high-quality after-sales service, has won a wide range of reputation and has become one high-quality supplier of many well-known construction companies such as MCC, CRCC, CREC, CSCEC in China and some companies in South America, South Asia, and Europ. In the new coming journey, our company will take "creating high-quality machinery, creating a great enterprise brand "as our goal, advocating the culture of quality management in the whole process of production line of high-quality machinery. We are looking forward to your sincere cooperation to create a new starting point of wealth.
Construction Hoist For Civil Projects
On large projects, clients benefit from our input at pre-planning stage to help determine exact lifting requirements. With our comprehensive service, we can advise clients on the most suitable access solution as well as providing the desired level of design input at any stage of the process.

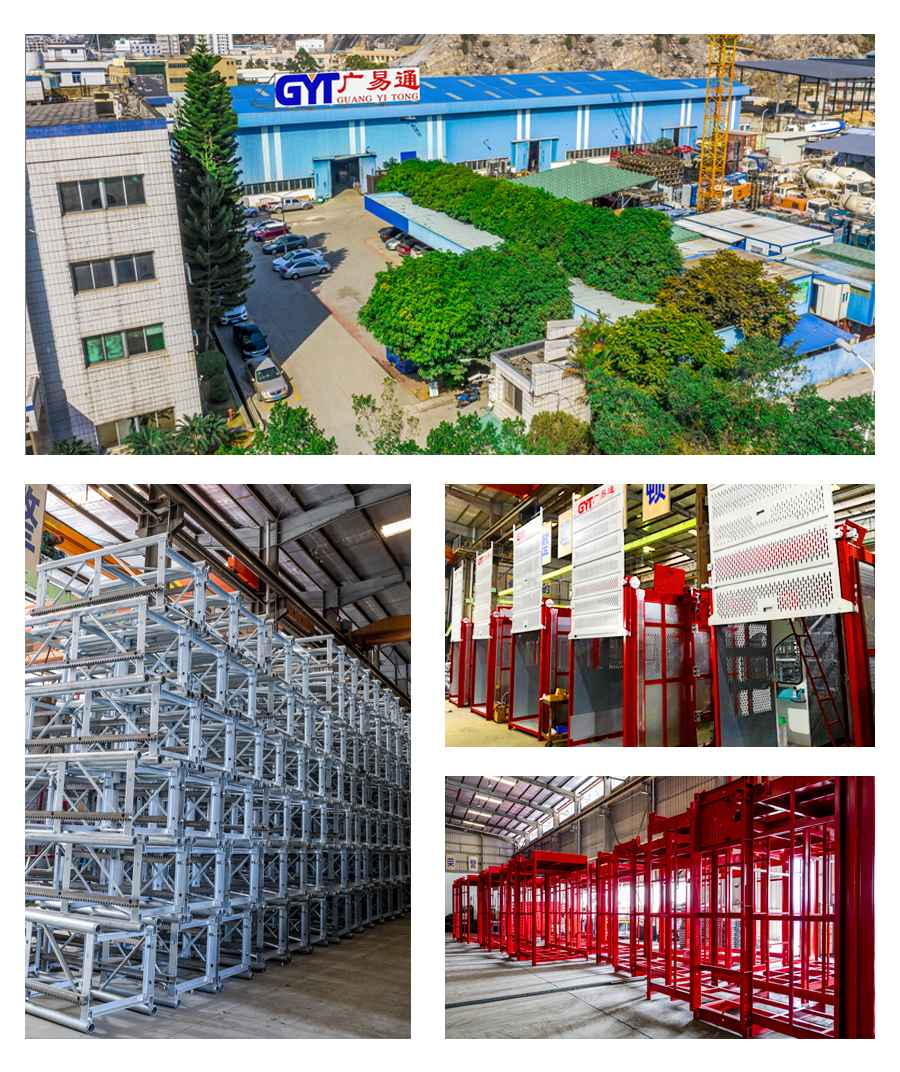

Manufacturing Workshop：
We pay all our attention for CE approved Materials Passenger hoist Building Construction Hoist design and manufacturing.
Package And Shipping
High quality Sc200/200 Building Construction Hoist for Material Passenger Lift Hoist is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...
The Building Construction hoist for materials and passengers can be customized according to customers'requirements (drawing, specifications and so on).
