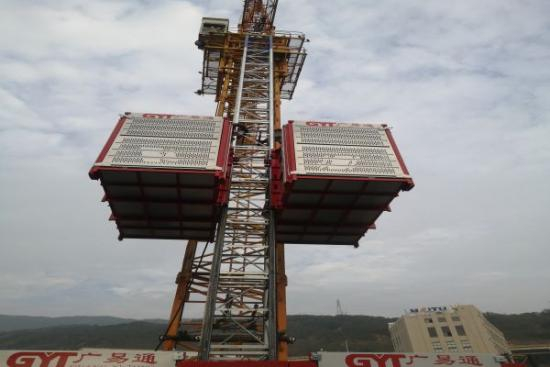

Construction Hoist SC200/200 0-42m/min double cages
Advantage:
1. Construction hoist the latest design adopts FRP grating, which is certainly corrosion-resistant, light in weight, high in strength, and increases the load bearing of the bottom of the cage.
2. The frame of the cage structure is made of a high-quality thick steel plate and mechanical bending process. the strength accuracy is better than ordinary angle steel.
3. The pipeline adopts Q345B high-frequency welding pipe material, secondly, the frame and the pipeline adopt carbon dioxide gas shielded welding.
4.the surface adopts dip paint process, all the sides of the pipeline are fully covered, so the corrosion resistance is good.
5.The frame adopts the bending process, which has high strength and good safety performance.
|Main Parameters:
| Characteristic | Model | Rated Loading | Lifting Speed | Motor Power | |
| Double cages | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) / 2x(3x8.5kw) | |
| SC150/150 | 2x1500kg | 33m/min | 2x(2x13kw) | ||
| SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) | ||
| Single cage | SC200 | 2000kg | 33m/min | 3x11kw /3x8.5kw | |
| SC150 | 1500kg | 33m/min | 2x13kw | ||
| SC100 | 1000kg | 33m/min | 2x11kw | ||
| Double cages | Low speed | SC200/200D | 2X2000kg | 0-40m/min | 2x(3x11kw)/2x(3x8.5kw) |
| SC100/100D | 2x1000kg | 0-40m/min | 2x(2x13kw) | ||
| Mid speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(2x23kw) | |
| SC100/100Z | 2x1000kg | 0-60m/min | 2x(2x15kw) | ||
| Single cage | Low speed | SC200 | 2000kg | 0-40m/min | 3x11kw /3x8.5kw |
| SC100 | 1000kg | 0-40m/min | 2x13kw | ||
| Mid speed | SC200 | 2000kg | 0-60m/min | 2x23kw | |
| SC100 | 1000kg | 0-60m/min | 2x15kw | ||
|Details Specification:
| Item | Construction hoist |
| Model | SC100/100/SC200/200 |
| Rated capacity/per cage | 1000kg-2000kg |
| Lifting speed | 0-63m/min,0-42m/min,0-33m/min |
| Cage size | 3.2*1.5*2.4m |
| Motor power | 3*15kw/3*11/2*15/3*18.5 |
| Speed ratio | 1:18 /1:16 |
| Invertor Power | 45 kW/37kw |
| Safety device | SAJ40-1.2/SAJ40-1.4/SAJ30-1.2 |
| Mast section size | 0.65*0.65*1.508m |
| Max. Installation height | 300m |
| Cable type | Cable basket/cable trolley |
|WHY CHOOSE US?
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection. Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
Completed safety measures Of Construction Hoist
1. Equipping with Anti-falling governor
2. Electrical and Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Frequency Conversion (Inverter) can be chosen
8. PLC Control system can be chosen
9. Level Calling system and auto leveling device to be choose.
On large projects, clients benefit from our input at pre-planning stage to help determine exact lifting requirements. With our comprehensive service, we can advise clients on the most suitable access solution as well as providing the desired level of design input at any stage of the process.
